PDCPD material quality is light (specific gravity close to water), modeling design freedom, not only has a high modulus of elasticity, but also has a very high impact resistance, high creep resistance, thermal stability, and outstanding corrosion resistance, weather resistance and paintability, is more suitable for the manufacture of construction machinery, agricultural machinery, trucks, automotive coverings, and sanitary ware, purification tanks as a representative of the integration of large-scale molding products.
Item Name: :
PDCPD-RIM resin A LiquidOrder(MOQ): :
4 drums A and 4 drums BPayment : :
50% deposit by T/T before mass production with the balance before shippingProduct Origin : :
Bengbu,Anhui,ChinaColor: :
Transparent and light yellowShipping Port : :
ShanghaiLead Time : :
20-35daysNet Weight : :
195kgs/barrelProduct Description
PDCPD-RIM is a paste resin composed of DCPD as the main raw material, supplemented by polymer rubber, antioxidant, main and auxiliary catalysts, and time regulator.
All added substances comply with international ROSH norms. It is generally composed of A and B two-component.
Content | A Liquid | B Liquid |
Appearance | Transparent/light yellow viscous liquid | Black Viscous Liquid |
Viscosity (30℃) | 200-380cps | 200-380cps |
A+B=1:1 In-Molding Mixing | Initial tackifying time (Mold temperature 25℃) | 5-30S |
Suitable injection time (Mold temperature 70℃) | ≤23S | |
Curing time (Mold temperature70℃) | 150±30S | |
Molding shrinkage of parts (thickness ≥4mm) | 10% | |
Warranty Period | 0-40℃,Nitrogen seal intact,≥6 months |
A Wide Range Of PDCPD Application

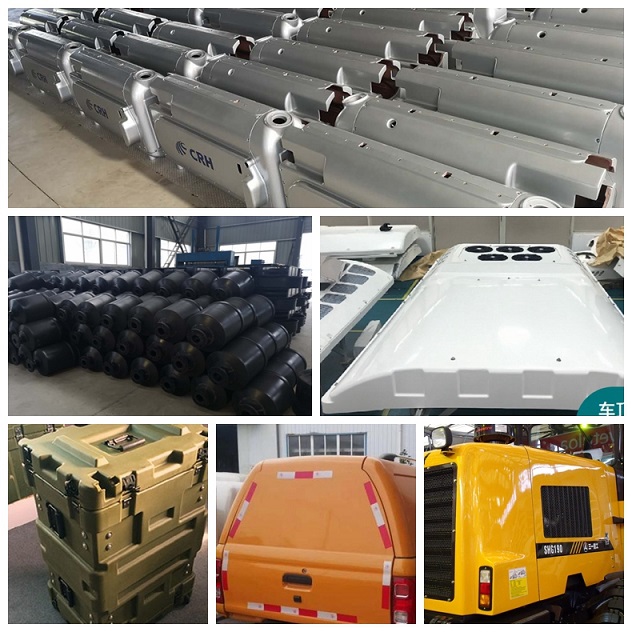

PDCPD is most suitable for the manufacture of construction machinery, agricultural machinery, trucks, automobile coverings, integrated large-scale molding products represented by sanitary equipment, and purification tanks. It is the ideal material to replace glass fiber reinforced plastic, some plastics, metal sheet metal parts, carbon fiber, and alloy in the future, and it is also the high-quality choice for lightweight equipment in many new industries such as new energy automobile, wind power generation, unmanned aerial vehicle, tunnel template, robot and so on, and the application field is extremely broad, and it can be widely used in the fields of automobile manufacturing, construction engineering template, agricultural machinery, military, civil, medical, scientific research and national defense, and it has great market potential and development space. development space is huge.

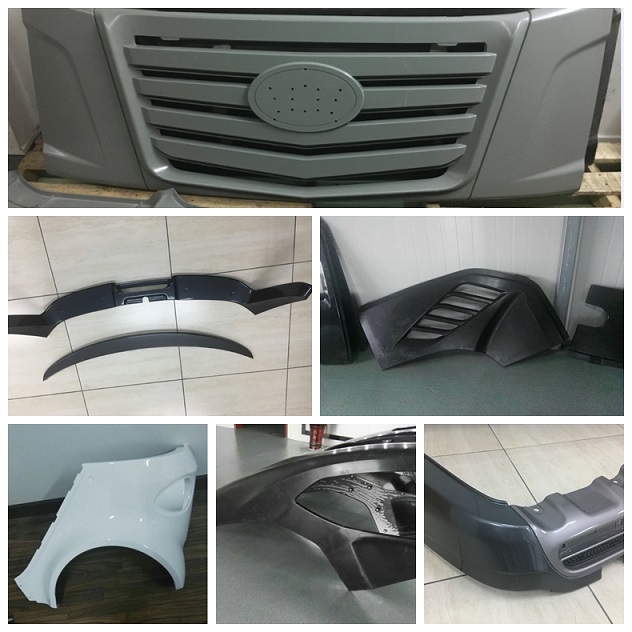

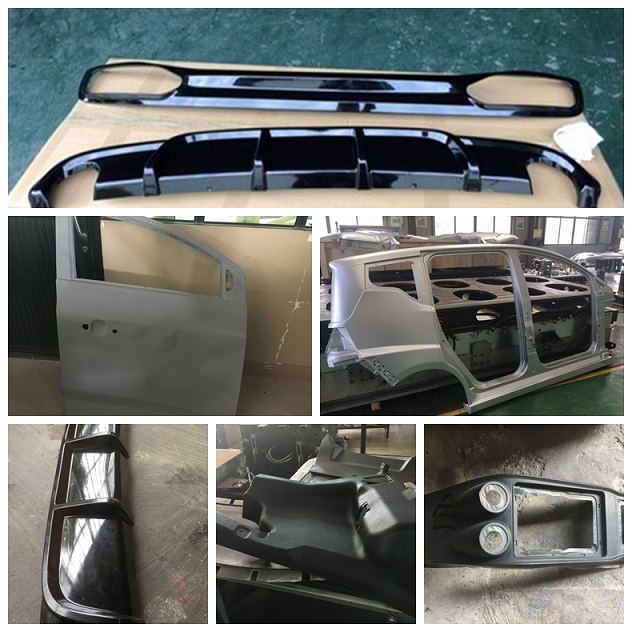

Especally, PDCPD materials are used in the production of automotive parts, replacing metal materials.
PDCPD Products Properties Test Reference
Content |
Unit |
Testing Method |
Content |
Unit |
Testing Method |
Tensile strength |
47.5MPa |
GB/T 1040.2-2006 |
Rockwell hardness |
115 |
GB/T3398.2-2008 |
Tensile modulus |
1900MPa |
GB/T 1040.2-2006 |
Distortion temperature |
110.5 |
GB/T1634.2-2004 |
Elongation at break |
12.30% |
GB/T 1040.2-2006 |
Density |
1.03g/cm³ |
GB/T1033.1-2008 |
Compressive strength |
60.8MPa |
GB/T 1041-2008 |
Glass transition temperature |
169℃ |
GB/T19466.2-2004 |
Bending strength |
75.6MPa |
GB/T9341-2008 |
Burning horizontally |
HB40 |
GB/T2408-2008 |
Bending modulus of elasticity |
2053MPa |
GB/T9341-2008 |
Water Absorption |
0.10% |
GB/T1034-2008 |
Notched impact strength of cantilever beam (23℃) |
33.1 |
GB/T1843-2008 |
Automotive interior combustion Performance (burning rate) |
A-0 |
GB 8410-2006 |
Notched impact strength of cantilever beam (-40℃) |
12.8 |
GB/T1843-2008 |
Rockwell hardness |
115 |
GB/T3398.2-2008
|
Obvious Advantage of PDCPD materials
